AMD · Radeon
Radeon RX 9070
A cut-down version of AMD's RDNA 4 Navi 48 chip with 16 GB of GDDR6, sold as partner cards and aimed at 1440p gaming.
- Memory
- 16 GB
- Shaders
- 3,584
- Boost clock
- 2,520 MHz
- Bandwidth
- 640 GB/s
- Power
- 220 W
What reviewers say
Reviewers agree it beats the RTX 5070 in most games without ray tracing, has more memory and runs cool and efficiently. All three found the RX 9070 XT better value for a little more money; Club386 and KitGuru also note that FSR 4 is in few games so far, and KitGuru that demanding ray tracing remains a weakness.
From club386.com, pcgamer.com and kitguru.net
Specifications
Report a wrong or missing specPerformance
- Chip maker
- AMD
- Architecture
- RDNA 4
- Shader cores
- 3,584
- Boost clock
- 2,520 MHz
- Architecture
- 56 compute units, 128 ROPs; game clock 2070 MHz; 53.9 billion transistors
- Ray tracing
- 56 third-generation Ray Accelerators
- AI cores
- 112 AI Accelerators; up to 578 TOPS INT8 or 1156 TOPS INT4 with structured sparsity
- Upscaling and frame generation
- AMD FSR "Redstone" (including FSR 4 upscaling), AMD Fluid Motion Frames, Radeon Super Resolution
- Cache
- 64 MB AMD Infinity Cache
Memory
- Video memory
- 16 GB GDDR6
- Memory bus
- 256-bit
- Memory bandwidth
- 640 GB/s
- Memory detail
- GDDR6 at up to 20 Gbps
Connections and power
- Board power
- 220 W
- Interface
- PCIe 5.0 x16
- Display outputs
- DisplayPort 2.1a, HDMI 2.1b (number of ports depends on the card)
- Power connector
- 2 × 8-pin
- Recommended power supply
- 650 W
- Video encode and decode
- H.264, HEVC and AV1 encode and decode
Pros and cons
Pros
- 16 GB of GDDR6 on a 256-bit bus, plus 64 MB of Infinity Cache
- 220 W typical board power, 84 W less than the RX 9070 XT
- PCIe 5.0 x16, DisplayPort 2.1a and HDMI 2.1b
Cons
- 56 compute units against the RX 9070 XT's 64, with a lower 2520 MHz boost clock
- No AMD reference card; size and cooling vary by manufacturer
Closest rivals
Model | Memory | Shaders | Boost clock | Bandwidth | Power | Released |
|---|---|---|---|---|---|---|
| 16 GB or 8 GB | 4,608 | 2,570 MHz | 448 GB/s | 180 W | Apr 2025 | |
| 16 GB | 4,096 | 2,970 MHz | 640 GB/s | 304 W | Mar 2025 | |
| 8 GB | 3,840 | 2,500 MHz | – | 145 W | May 2025 |
Sources
- amd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070.html
- amd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rd…

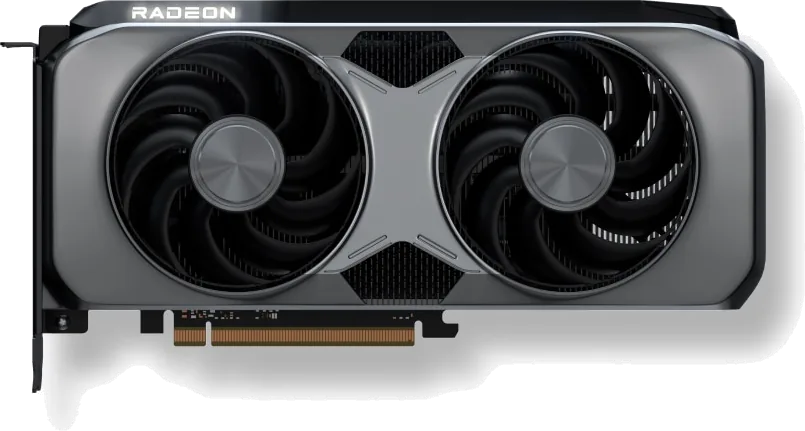

Photo: amd.com
