AMD · Radeon

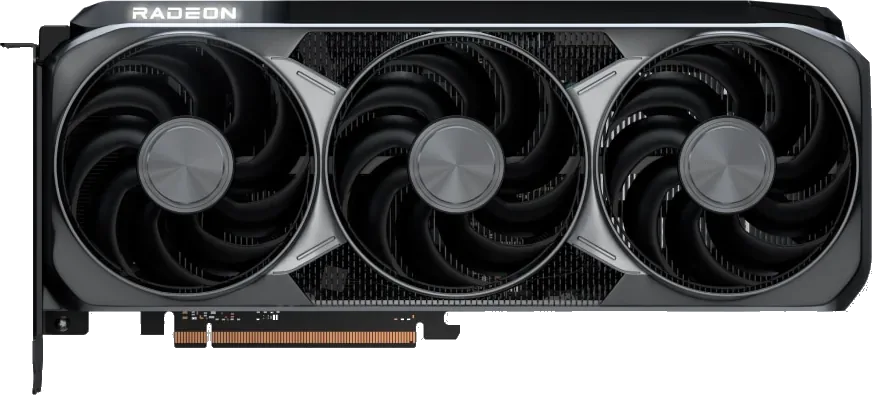

Radeon RX 9070 XT
AMD's fastest RDNA 4 graphics card, with 16 GB of GDDR6, sold as partner cards and aimed at 1440p and 4K gaming.
- Memory
- 16 GB
- Shaders
- 4,096
- Boost clock
- 2,970 MHz
- Bandwidth
- 640 GB/s
- Power
- 304 W
What reviewers say
Reviewers agree it is excellent value, matching or beating the RTX 5070 Ti in games without ray tracing for less money, with far better ray tracing than AMD's previous cards and a strong FSR 4 upscaler. NVIDIA still leads in heavy ray tracing and software features, FSR 4 is in few games so far, and power draw is fairly high.
From tomshardware.com, club386.com and kitguru.net
Specifications
Report a wrong or missing specPerformance
- Chip maker
- AMD
- Architecture
- RDNA 4
- Shader cores
- 4,096
- Boost clock
- 2,970 MHz
- Architecture
- 64 compute units, 128 ROPs; game clock 2400 MHz; 53.9 billion transistors
- Ray tracing
- 64 third-generation Ray Accelerators
- AI cores
- 128 AI Accelerators; up to 779 TOPS INT8 or 1557 TOPS INT4 with structured sparsity
- Upscaling and frame generation
- AMD FSR "Redstone" (including FSR 4 upscaling), AMD Fluid Motion Frames, Radeon Super Resolution
- Cache
- 64 MB AMD Infinity Cache
Memory
- Video memory
- 16 GB GDDR6
- Memory bus
- 256-bit
- Memory bandwidth
- 640 GB/s
- Memory detail
- GDDR6 at up to 20 Gbps
Connections and power
- Board power
- 304 W
- Interface
- PCIe 5.0 x16
- Display outputs
- DisplayPort 2.1a, HDMI 2.1b (number of ports depends on the card)
- Power connector
- 2 × 8-pin
- Recommended power supply
- 750 W
- Video encode and decode
- H.264, HEVC and AV1 encode and decode
Pros and cons
Pros
- 16 GB of GDDR6 on a 256-bit bus, plus 64 MB of Infinity Cache
- 128 AI Accelerators for FSR 4 machine-learning upscaling
- PCIe 5.0 x16, DisplayPort 2.1a and HDMI 2.1b
Cons
- 304 W typical board power; AMD recommends a 750 W power supply
- GDDR6 rather than GDDR7, at 640 GB/s
- No AMD reference card; size and cooling vary by manufacturer
Closest rivals
Model | Memory | Shaders | Boost clock | Bandwidth | Power | Released |
|---|---|---|---|---|---|---|
| 16 GB or 8 GB | 4,608 | 2,570 MHz | 448 GB/s | 180 W | Apr 2025 | |
| 16 GB | 3,584 | 2,520 MHz | 640 GB/s | 220 W | Mar 2025 | |
| 12 GB | 6,144 | 2,512 MHz | 672 GB/s | 250 W | Mar 2025 |
Sources
- amd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.h…
- amd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rd…
Photo: amd.com
